16 GIGABIT PORTS: 16 Gigabit Ports for High-Speed Networking. Provides fast connectivity for 16 devices, supporting computers, servers, printers, NAS, IP cameras, wireless APs, peripherals, security systems, access controls, VoIP phones and more
2 10GbE SFP UPLINK PORTS: Facilitates high-speed uplinks and fiber connectivity for enhanced network flexibility and scalability
2 SFP PORTS: Provides additional optical connectivity options for specific networking requirements

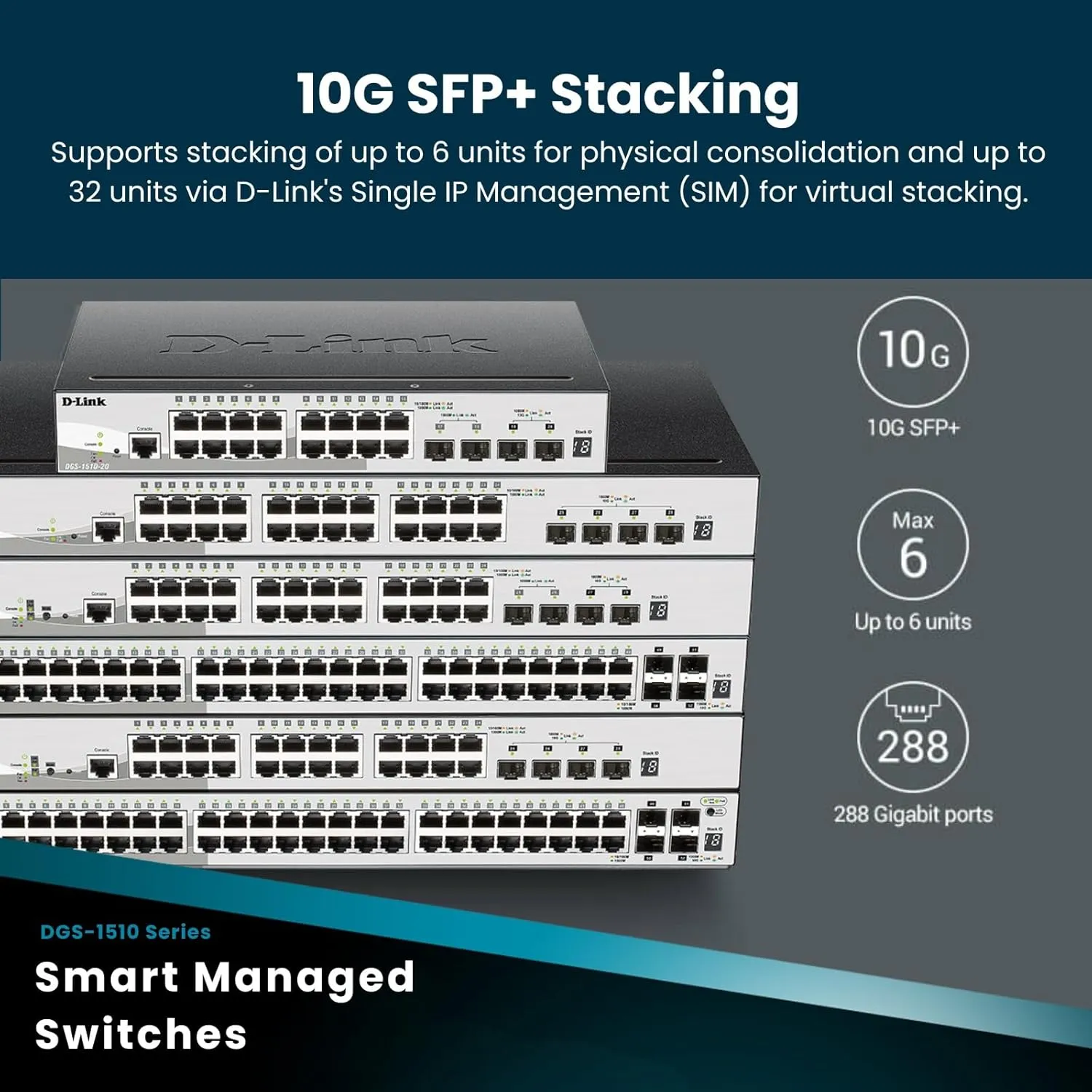

PHYSICAL AND VIRTUAL STACKING: Supports stacking of up to 6 units for physical consolidation and up to 32 units via D-Link's Single IP Management (SIM) for virtual stacking. Essential for resilience, streamlined management, and scalable networks
INTUITIVE WEB-BASED MANAGEMENT AND FULL CLI: Offers an intuitive web interface & full CLI for effortless setup, monitoring, & management. Includes IGMP, MLD Snooping, LLDP/LLDP-MED, and dual image for robust, scalable networks
LAYER 3 LITE & STATIC ROUTING: Integrates IPv4/IPv6 routing and IP segmentation to boost performance
COMPREHENSIVE SECURITY SUITE: Combines ACL, ARP Spoofing Prevention, IP-MAC-Port Binding, D-Link Safeguard Engine, and DoS Attack Prevention to help defend against threats

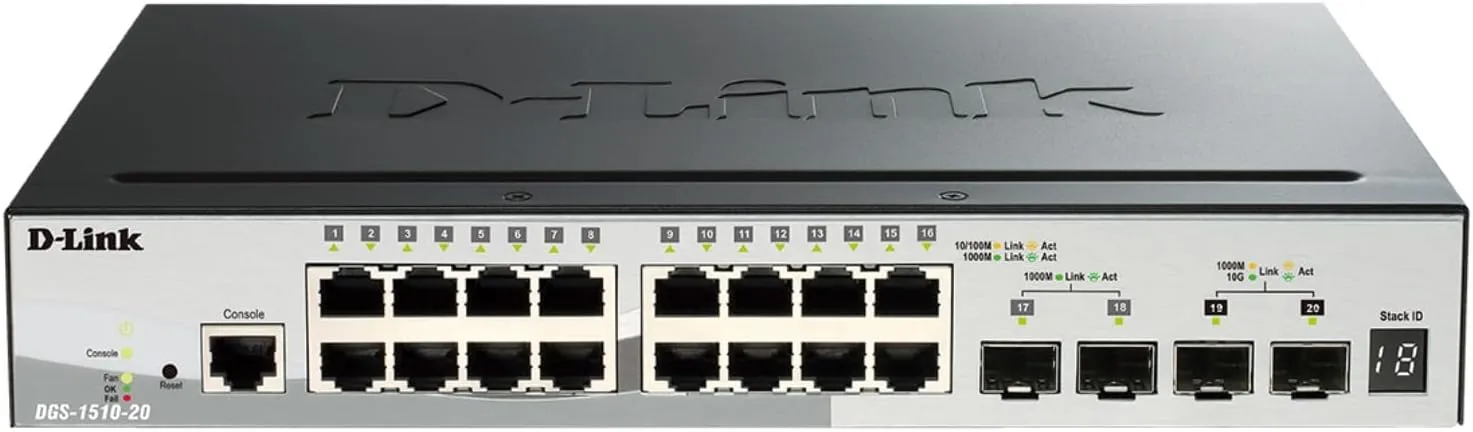

The DGS-1510-20 supports 16 10/100/1000BASE-T ports, 2 Gigabit SFP ports, and 2 10-Gigabit SFP ports. The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10-Gibabit port connectivity, making them ideal for deployment in SME/SMB networks. This series integrates advanced management and security functions that are similar to those of a fully managed switch, but less complex. Available in 16, 24 and 48 10/100/1000 Mbps port models; these switches also include 1G and/or 10G optical SFP/SFP ports. Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP ports to create a physical stack. Users can mix any of the DGS-1510 SmartPro models in a single stack to allow simultaneous and easy configuration, management and troubleshooting. The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, LACP, and LLDP. Network maintenance features include Loopback Detection and Cable Diagnostics. D-Link Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port based authentication. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by screening ingress traffic based on MAC or IP addresses. ARP Spoofing Prevention protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment. All DGS-1510 Series are certified to be IPv6 Ready Logo Phase 2, which guarantees interoperability for IPv6 environments.
