- Controlled Cooling – High-performance FlowDrive Max pump delivers optimal flow in any situation. Benefit from consistent performance, longevity, and CORSAIR's three-year warranty for peace of mind.
- Smart In-Loop Temperature Control – Fine-tune your pump flow rate using the integrated coolant temperature sensor and CORSAIR iCUE software.
- Transparent Nylon Reservoir – The integrated 440ml reservoir with an anti-vortex mesh puts your coolant front-and-center, with stunning angular design and an integrated fill port that makes filling easy.
- Brilliant IPS LCD Display – Showcase your creativity and personalize your build like never before with real-time coolant temperature, animated GIFs, memes, or your team’s logo on a custom 30 FPS IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m² backlight, 24-bit true color depth.
- Stunning RGB Lighting – 22 Individually addressable RGB LEDs deliver customizable, immersive visual experience enhanced by the powerful CORSAIR iCUE software.

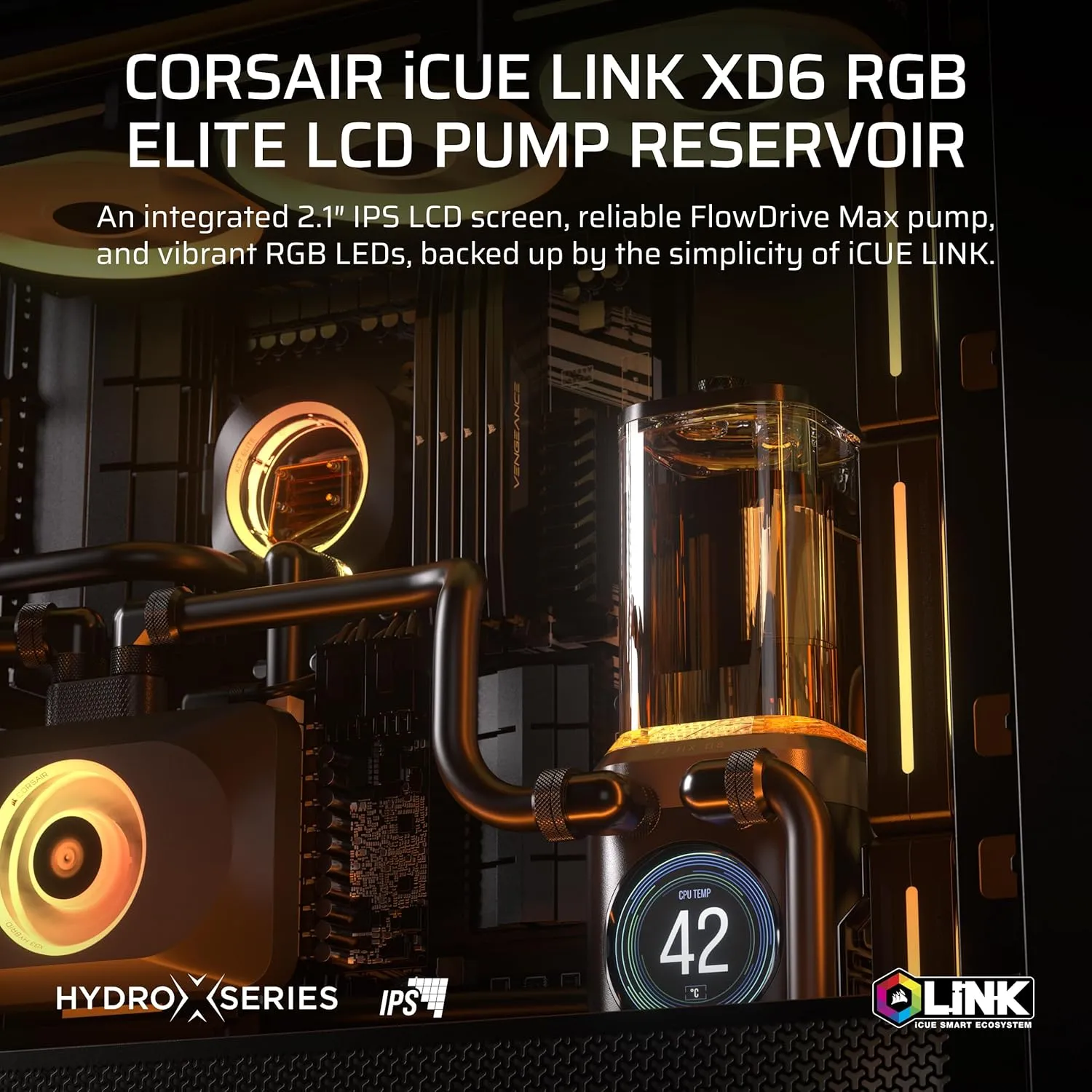

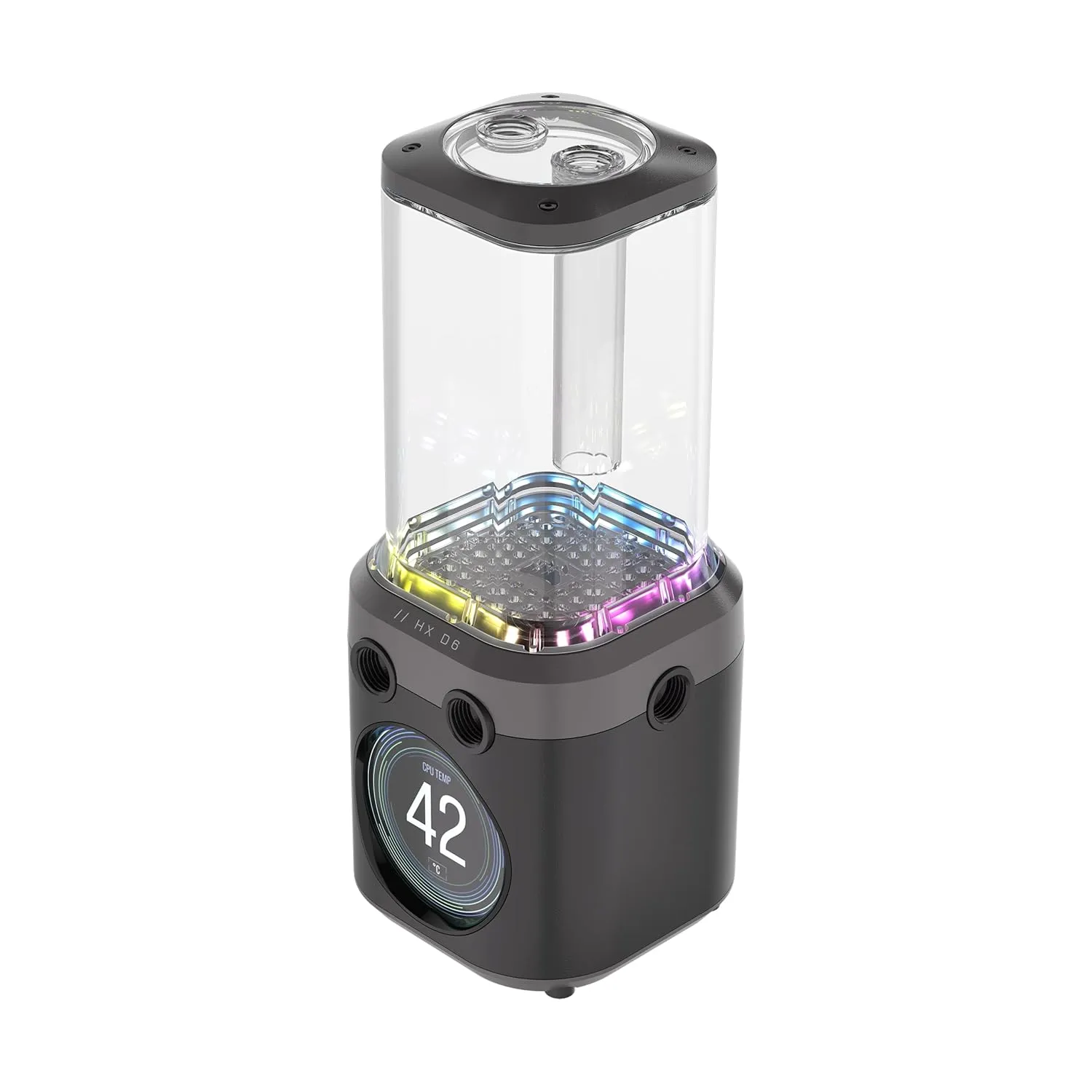

The CORSAIR iCUE LINK XD6 RGB ELITE LCD Pump/Reservoir delivers both performance and style, with its FlowDrive Max pump ensuring high coolant flow and its sleek metallic body and transparent nylon reservoir creating a striking aesthetic. The 440ml reservoir, featuring an anti-vortex mesh, enables efficient coolant management, while the built-in temperature sensor offers precise cooling control. Customization is enhanced by a vibrant LCD screen and 22 addressable RGB LEDs, all managed through iCUE software. A single iCUE LINK cable connects it to the iCUE LINK System Hub (sold separately), for a streamlined, modern setup. Technical Specifications: Product Type: Pump/Reservoir Unit Pump Type: FlowDrive Max Pump Coolant Capacity: 440ml Max Hydraulic Performance: 500L/h at 3m Pressure Head Max RPM: 4500RPM PWM Duty Cycle Range: 20-100% Pump Voltage: 12V Fluid Chamber Material: Nylon Compatible Materials: Only mix with other cooper / brass products Compatible Coolants: CORSAIR XL or equivalent Port Thread: G1/4” BSPP Max Operating Temperature: 50º C Required Controller For iCUE Support: CORSAIR iCUE LINK System Hub Lighting: RGB Color: Stealth Gray Box Contents: 1x iCUE LINK XD6 RGB ELITE LCD Pump Reservoir Unit, 1x 120mm Fan Mounting Bracket, 1x 140mm Fan Mounting Bracket, 1x L-Bracket, 3x G1/4” Stop Plugs, 1x 600mm iCUE LINK Cable, 1x 600mm USB-C Cable, ATX 24-Pin Bridging Plug, 4x M3 Thumb Nuts, 4x M3 x 6mm Mounting Screws, 4x M4 Nuts, 4x M4 x 6mm Mounting Screws, 4x M4 x 35mm Screws, 4x M4 Washers, 1x Plug Tool
- Product Dimensions : 11.32 x 5.77 x 4.69 inches; 1.8 Pounds
- Date First Available : May 6, 2025
- Manufacturer : Corsair
- Country of Origin : Taiwan
