- Durable & Sturdy: The Bike Motor Kit 's aluminum engine shell, iron fuel tank with baking paint, a 415# steel chain with rust prevention shot blasting process, and a nylon cover on the side of the engine offer corrosion-resistance and wear-resistance, achieving a max bearing capacity of 440 pounds
- Low Fuel Consumption: The Bicycle Engine Kit overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. The air filter also improves air filtration performance and reduces wear, achieving a fuel consumption of around 0.66 gallons/100km and saving much money on fuel costs
- Strong Power: The engine boasts a robust 3.5HP horsepower, a displacement of 100cc, a rated power of 2kw/h, and a max rotating speed of 3600RPM, which provides you with strong power and accelerates your bike to a max speed of 50km/h
- Effective Cooling System: The Gas Bicycle Engine by adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting riding
- Quiet Operation: This bicycle engine kit only has slight noise (about 75dB) and vibration when used. You can use it in most outdoor environments without worrying about noise disturbance
Details
Comfortable Handle: The ergonomic T-shaped start handle provides a point of application of force for easy and comfortable starting.
Chain Cover: It's made of high-quality iron and can protect you from getting hurt.
Application
This product is suitable for mountain bikes, road bikes, gravel bikes, beach bikes and so on with large triangular empty frames.
Specifications
Color: Black, Silver
Type: Single Cylinder, 4-stroke, Air-cooling
Material: Aluminum, Iron, #415 Steel, Rubber, Nylon
Surface Treatment: Baking Paint, Rust Prevention Shot Blasting
Starter System: Hand Start
Number of Teeth: 44
Ignition Mode: CDI
Max Torque: 4.5N-m
Bore Stroke: 56*40mm/2.2*1.57inch
Displacement: 100CC
Horsepower: 3.5HP
Max Power: 2kw/h
Max Rotating Speed: 3600rpm
Max Speed: 50km/h
Compression Ratio: 7:1
Fuel Tank Capacity: 2L/0.52 Gallons
Fuel Consumption: 2.5L/0.66 Gallons/100KM
Lubricant Capacity: 0.6L/0.15 Gallons
Gasoline Type: 92#, 95#
Max Load Bearing Capacity: 200kg/440lbs
Noise: About 75 decibels
Net Weight: 18.75kg/41.33lbs
Chain Cover: 40*7.5cm/15.74*2.95in
Fuel Tank Size: 29*15*16cm/11.41*5.9*6.29in
Gear Diameter: 18cm/7.08in
Diameter of Bicycle Teeth Disc: 18cm/7.08in
Engine Size: 38*29*23.5cm/14.96*11.41*9.25in

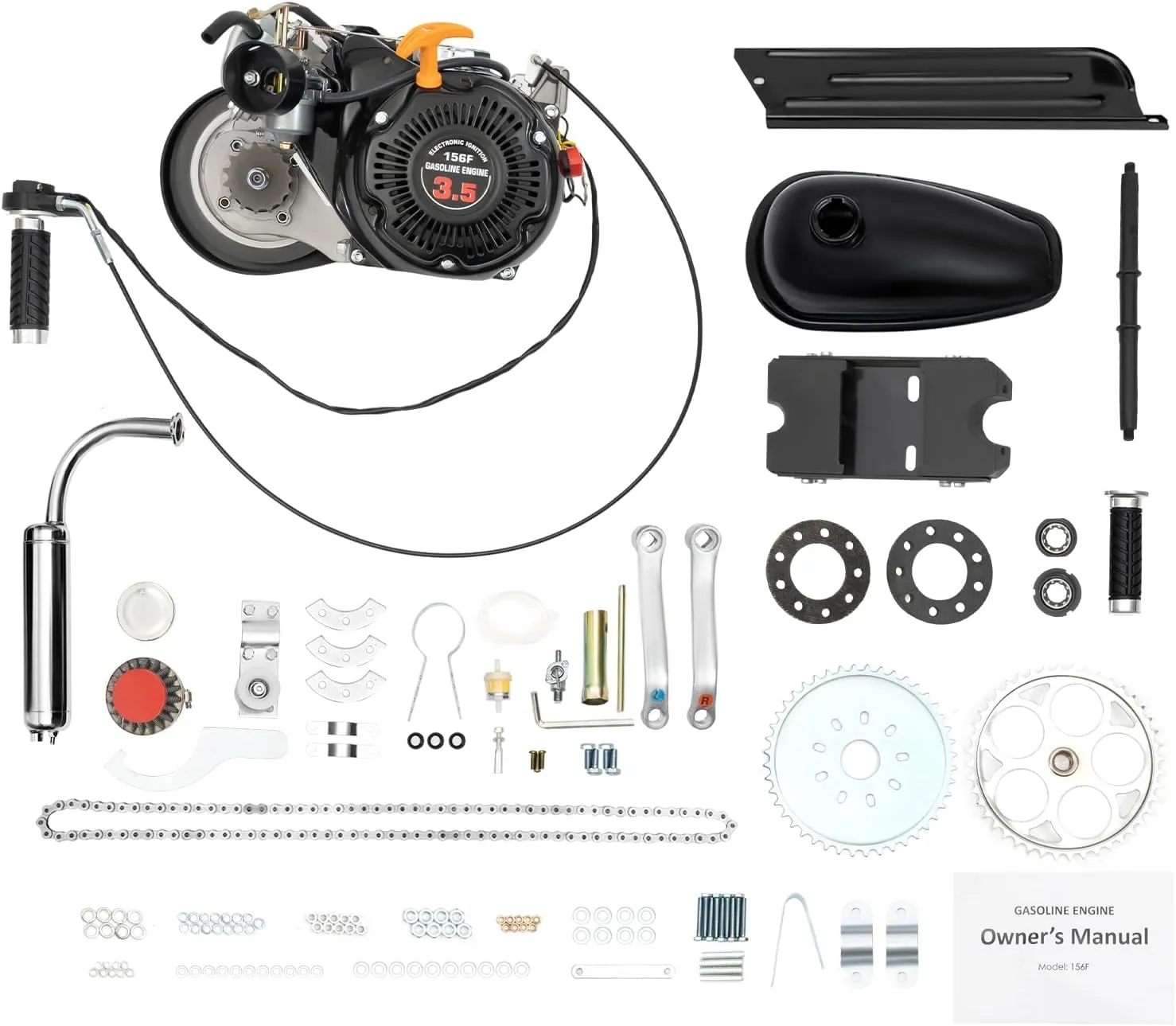

Package Included
1*Bicycle Engine Kit
1*English Manual
All Accessories for Assembly
Notes
1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Please note that professional installation is recommended.
