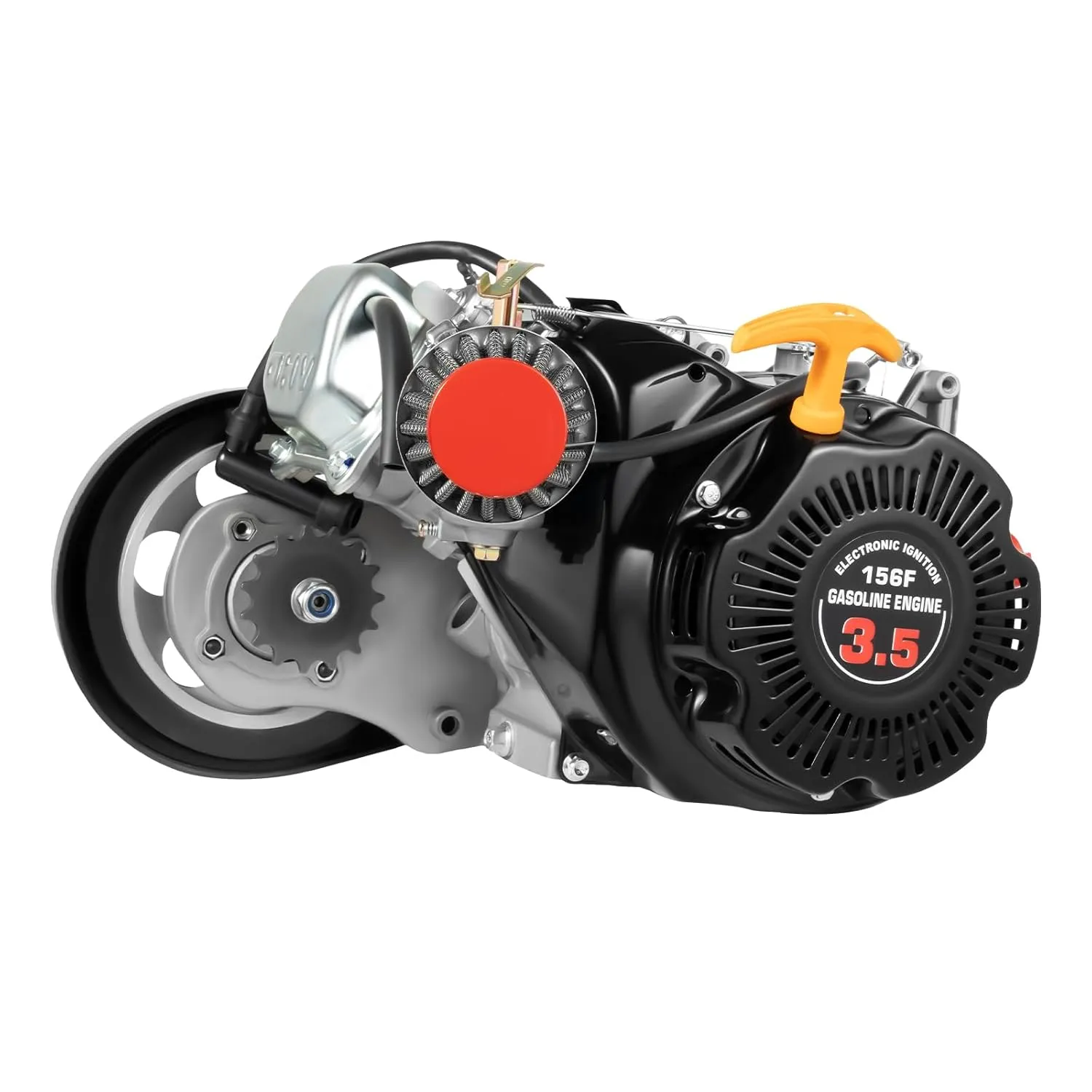

Name: 4-Stroke 3HP Bicycle Engine Kit,100cc Gas Petrol Motorized Bike Bicycle Engine Motor,Gasoline Engine Kit,Gas Powered Engine Motor Kit with Air Cooling,Single Cylinder (Belt Drive,4-Stroke 3HP)
SKU: 1027694

Product Parameters：Rated Power: 2KW/3600rpm,Max. Torque: 4.5N.m/2500rpm,Fuel Tank Capacity: 0.42gal,Fuel Consumption: 420g/KW.h,Oil Capacity: 0.1gal,Oil Consumption: ≤6.8 g/KW.h,Min. Stable Speed Unloaded: 3600rpm,Reduction Ratio: 1:1,Bore x Stroke: 56x40 mm,1Product Size: 11.2*13.7*11in,Net Weight: 44lbs
Excellent Hardware：The 4-stroke engine adopt high-quality aluminum, iron, and plastic material give it good hardness and durability. The engine boasts a robust 3.5HP horsepower, a displacement of 100cc, a max power of 2kw/h, and a max rotating speed of 3600RPM, which provides you with strong power and accelerates your bike to a max speed of 50km/h.
Low Fuel Consumption: The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. The air filter also improves air filtration performance and reduces wear, achieving a fuel consumption of around 0.66 gallons/100km and saving much money on fuel costs.
Large Fuel Tank: It measures 11.41*5.9*6.29 inches with a large capacity of 0.52 gallons, allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.
Application：This engine is suitable for mountain bikes, road bikes, gravel bikes, beach bikes and so on with large triangular empty frames.

Specifications

Model: EZ-156F

Type: Forced Air Cooling, 4-Stroke, OHV, Single-cylinder, Inclined by 25 Degrees

Starting System: Recoil Start

Material: Aluminum, Iron, and Plastic

Color: Black, Silver

Max Output: 3HP

Rated Power: 2KW/3600rpm

Max. Torque: 4.5N.m/2500rpm

Fuel Tank Capacity: 1.6L/0.42gal

Fuel Consumption: <420 g/KW.h

Oil Capacity: 0.4L/0.1gal

Oil Consumption: <6.8 g/KW.h

Min. Stable Speed Unloaded: 3600rpm

Reduction Ratio: 1:1

Bore x Stroke: 56x40 mm

Displacement: 100cc

Compression Ratio: 7:1

Product Size: 28.5*35*28cm/11.2*13.7*11in

Packing Size: 73*34*25cm/28.74*13.38*9.84in

Gross Weight: 21kg/46.29lbs

Net Weight: 20kg/44lbs

Key Features

★Premium Material: The high-quality aluminum, iron, and plastic material give it good hardness, wear resistance, and durability, allowing for long-term use.

★Enjoy Riding: This kit converts your bike into a motorized bicycle, with max. speed of 3600rpm for great efficiency and convenience, allowing you to fully enjoy the fun of riding on your commute and short journeys.

★High Performance: The 4-stroke engine is more stable, more reliable, and quieter than the 2-stroke engine. Also, the 56mm bore cylinder increases the bearing capacity, and reduces the working temperature, making it easier to start, while providing continuous output over a range of speeds.

Fits (As a Reference)

For Beach Bikes with Large Triangular Frame Space

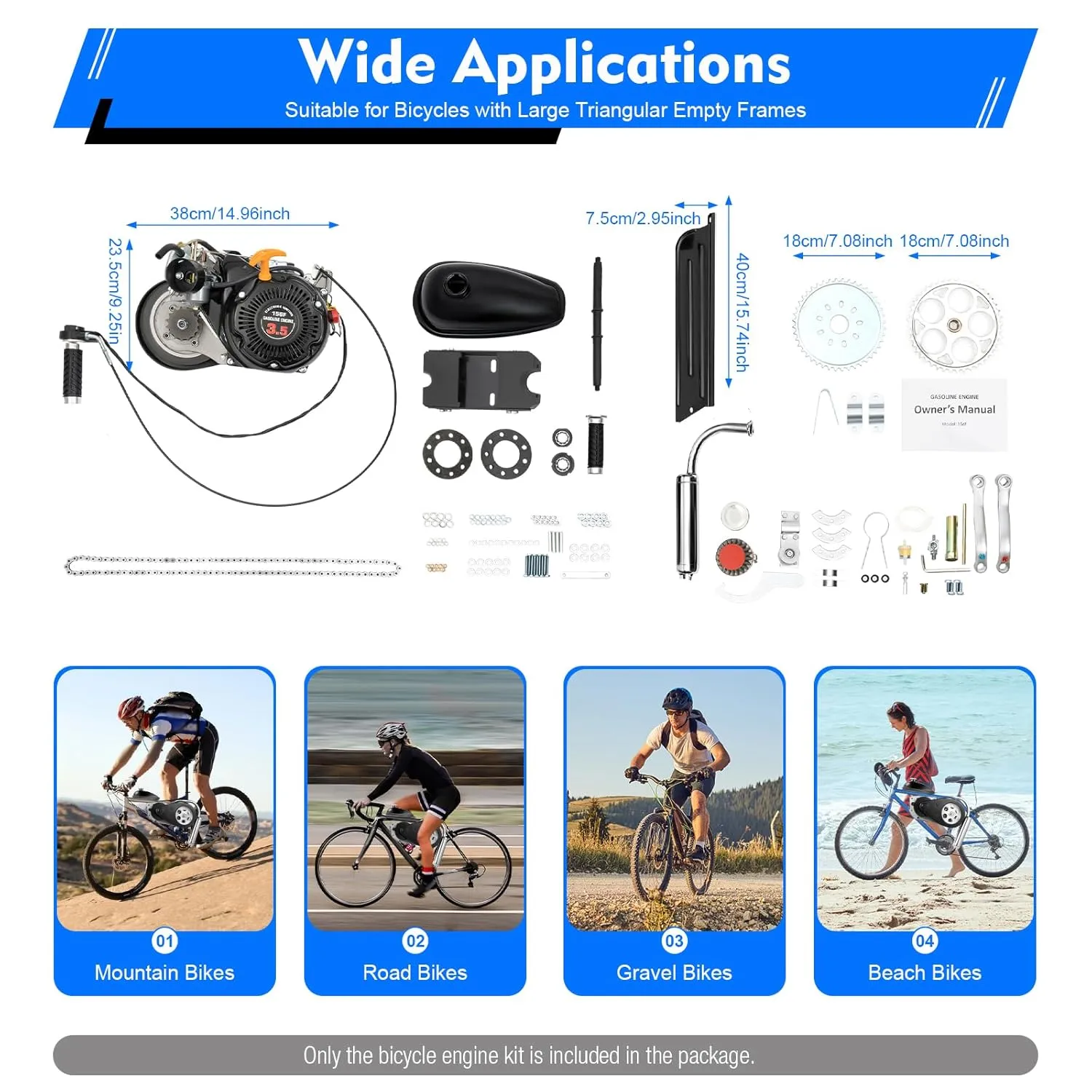

Package Included

1* 100cc 4-Stroke Gasoline Engine

1* Fuel Tank

1* Base Bracket

1* Exhaust Pipe

1* 44 Tooth Chain

1* Chain Tensioner

1* Chain

1* Chain Guard

2* Fixed Iron Pieces
