- 【High-Speed Multi-Rate Transmission】Data Rate: This 10Gb SFP RJ45 module supports multi-rate transmission, covering bandwidth requirements of 1.25G, 2.5G, 5G, and 10G, catering to different network environments. ★ Interface Type: Uses a standard RJ-45 interface, making it easy to connect with common network devices. Cable Type: Compatible with CAT.6a and CAT7 copper cables, ensuring high-performance transmission. ★ Transmission Distance: The maximum transmission distance can reach up to 30 meters, suitable for most data center and enterprise network connections.
- 【Wide Compatibility】Widely used in fiber switches, routers, NICs, servers, and other fiber optic equipment with 10Gb SFP ports. Compatible with MSA compliant equipment such as Cisco, Meraki, Ubiquiti, D-Link, Supermicro, TP-Link, Broadcom, Linksys, Huawei, MikroTik, Netgear, and other open switches. ★ Application Scenarios: It can seamlessly connect to 10G Ethernet switches, edge routers, and media converters, making it suitable for data centers, enterprise networks, and high-performance computing environments.
- 【Auto-Negotiation Function】Multi-Rate Auto-Negotiation: The module supports 1/2.5/5/10GbE auto-negotiation, automatically adjusting the transmission rate based on actual network needs, providing flexible and efficient network connections. ★ Long-Distance Support: Over Cat6a/Cat7 copper cables, the transmission distance can reach up to 30 meters; at 1Gbps, 2.5Gbps, and 5Gbps rates, the maximum distance can reach up to 100 meters using CAT5/5e copper cables, adapting to different cabling environments.
- 【Plug and Play, Easy to Install】Simple Installation: Supports plug and play, no additional software installation or configuration required. Users can easily insert it into a compatible SFP slot for quick network connections. ★ Hot-Swappable: Supports hot-swapping, allowing the module to be inserted or removed without shutting down the device power, facilitating maintenance and upgrades. ★ Standard Compatibility: Compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431, and SFF-8432 MSA standards, and RoHS compliant (lead-free), ensuring environmental safety. ★ Ideal for business, office, home, and data center LAN applications.
- 【Customer Satisfaction Assurance】Rigorous Testing: Each 10G SFP RJ45 module undergoes strict individual testing before shipment to ensure 100% compatibility with various 1G/2.5G/5G/10G switches, routers, servers, and NICs, ensuring reliable performance. ★ After-Sales Service: We offer 24/7 customer service, 30-day free returns, 2-year warranty, and lifetime technical support. If you have any compatibility concerns, our technical team is always ready to assist, ensuring your satisfaction and worry-free use.

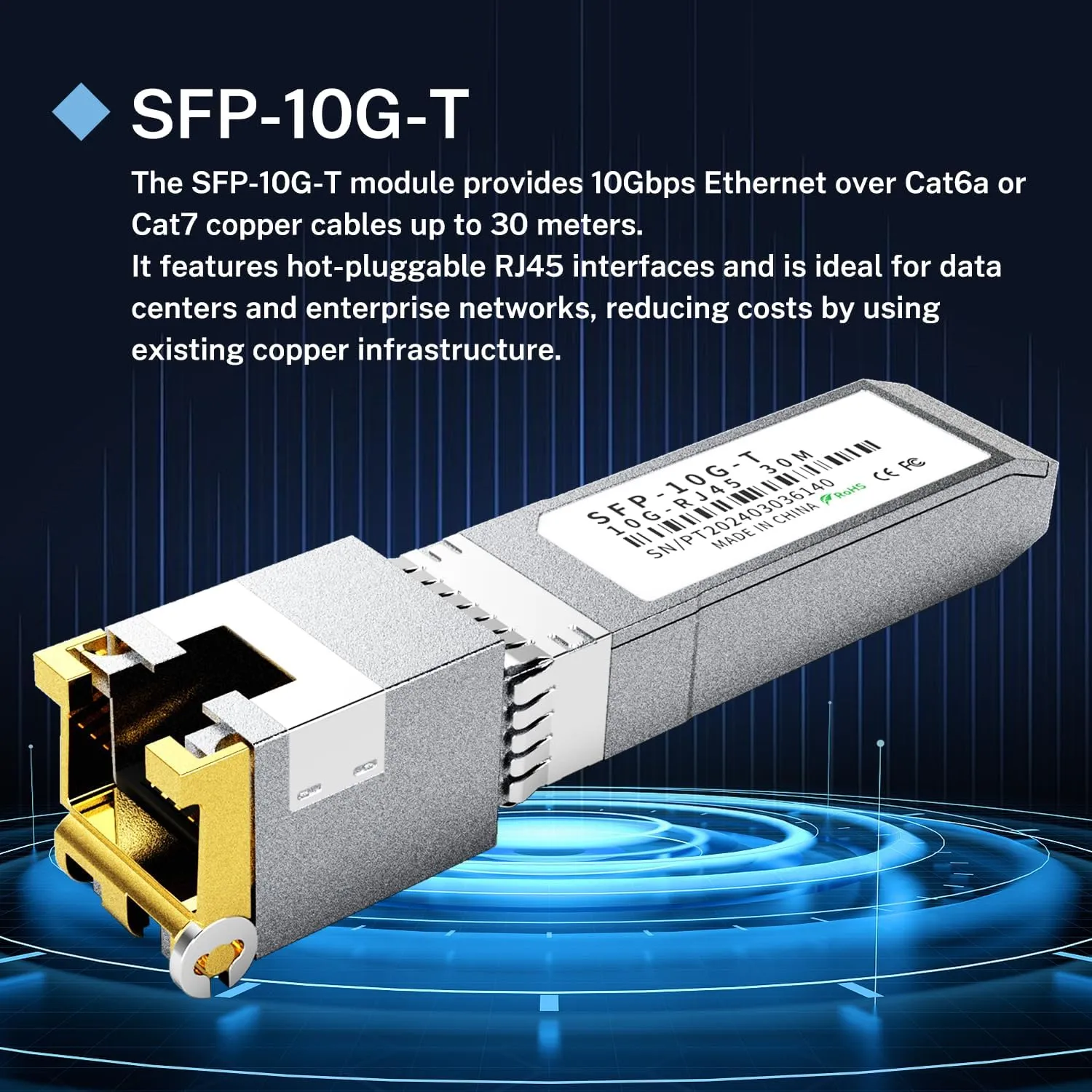

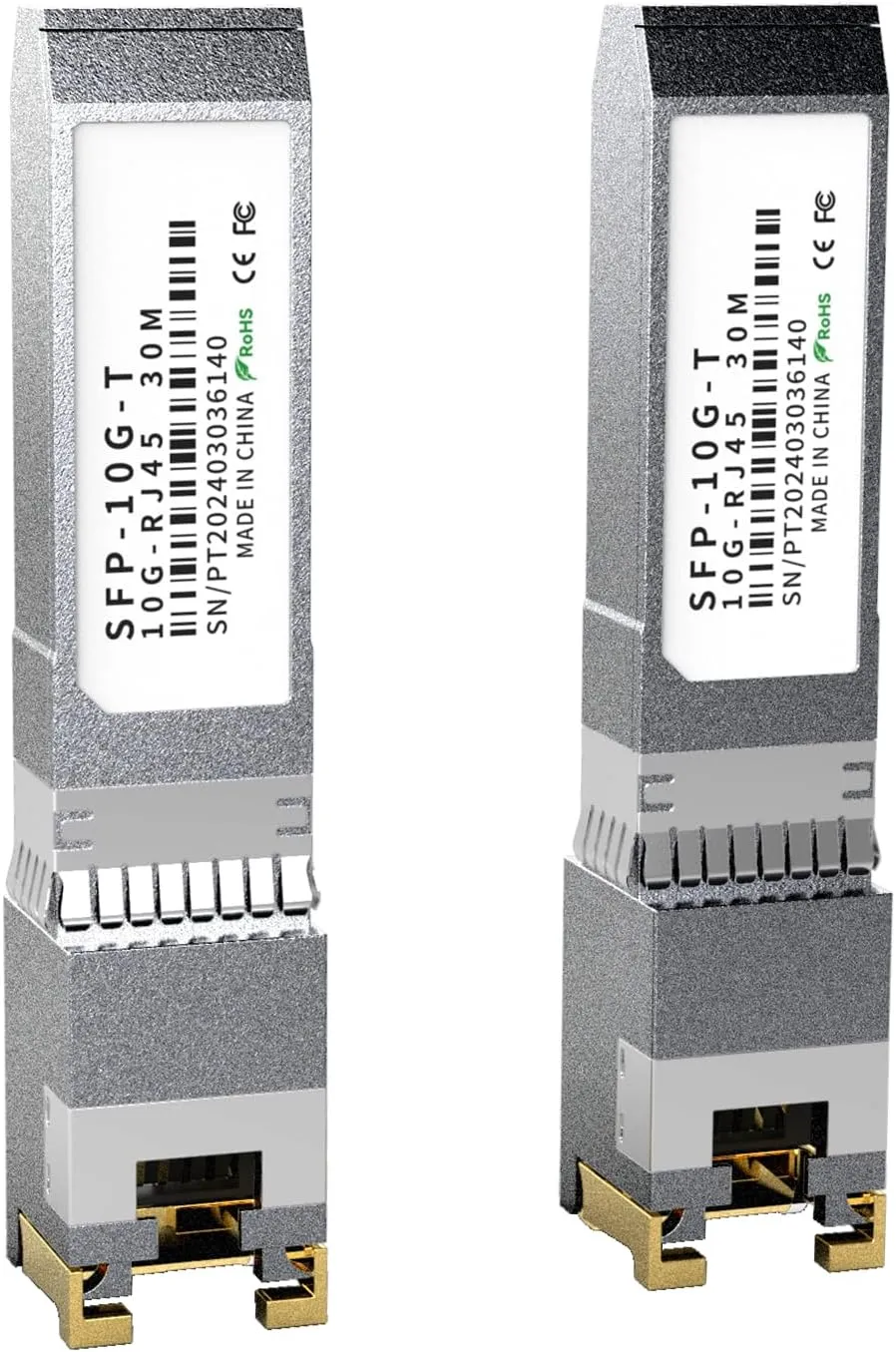

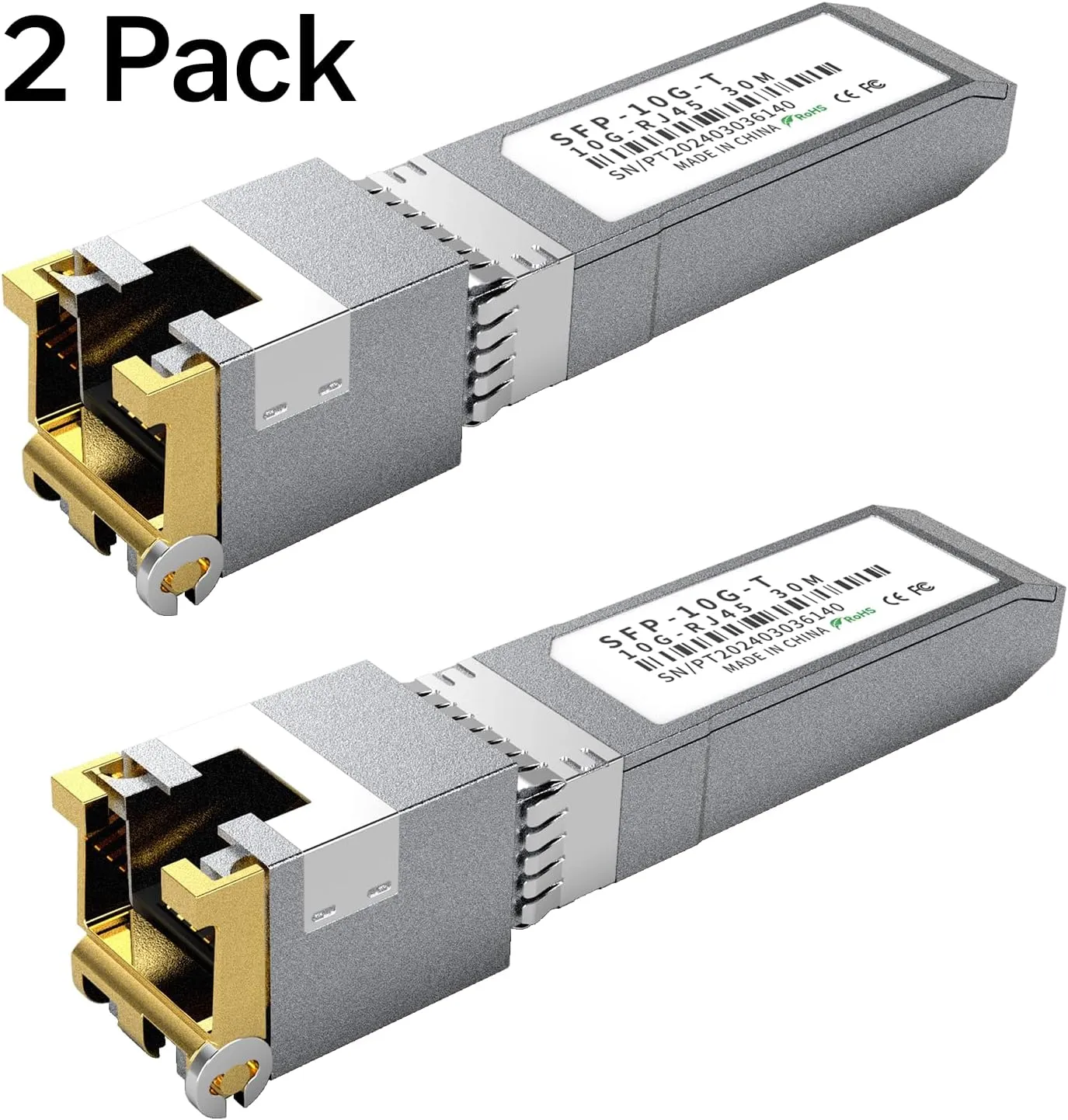

2PCS 10GBase-T SFP 10 Gigabit RJ45 Copper SFP Transceiver Module - up to 30 Meters
This 10GBase-T SFP RJ45 Copper Transceiver Module is designed for high-speed data transfer and reliable connectivity in your network infrastructure. It supports data rates from 1.25G to 10G, making it versatile for various applications and compatible with a wide range of network devices.
Features:
Compliant Protocols: Adheres to SFF-8431 and SFF-8432 MSA, IEEE 802.3az, and IEEE 802.3bz standards, ensuring high compatibility and performance.
Operating Temperature: Functions effectively within an operating case temperature range of 0°C to 70°C, suitable for various environments.
Low EMI Emissions: Features a fully metallic enclosure to minimize electromagnetic interference.
Power Supply: Requires a 3.3V single power supply and boasts low power consumption (2.5W max at 30m).
Hot-Pluggable: Compact RJ-45 connector assembly with a hot-pluggable SFP footprint allows for easy installation and replacement.
Advanced Features: Supports TX Disable and RX Los functions, physical layer IC access via a 2-wire serial bus, and auto-negotiation with other 10GBase-T PHYs.
Wide Cable Compatibility: Supports links up to 30m using Cat 6A cables and up to 100m using Cat 5e cables for 100/1000Base-T connections.
MDI/MDIX Crossover: Includes multiple loopback modes for testing and troubleshooting.
Built-in Diagnostics: Equipped with built-in cable monitoring and link diagnostic capabilities, supporting both unshielded and shielded cables.

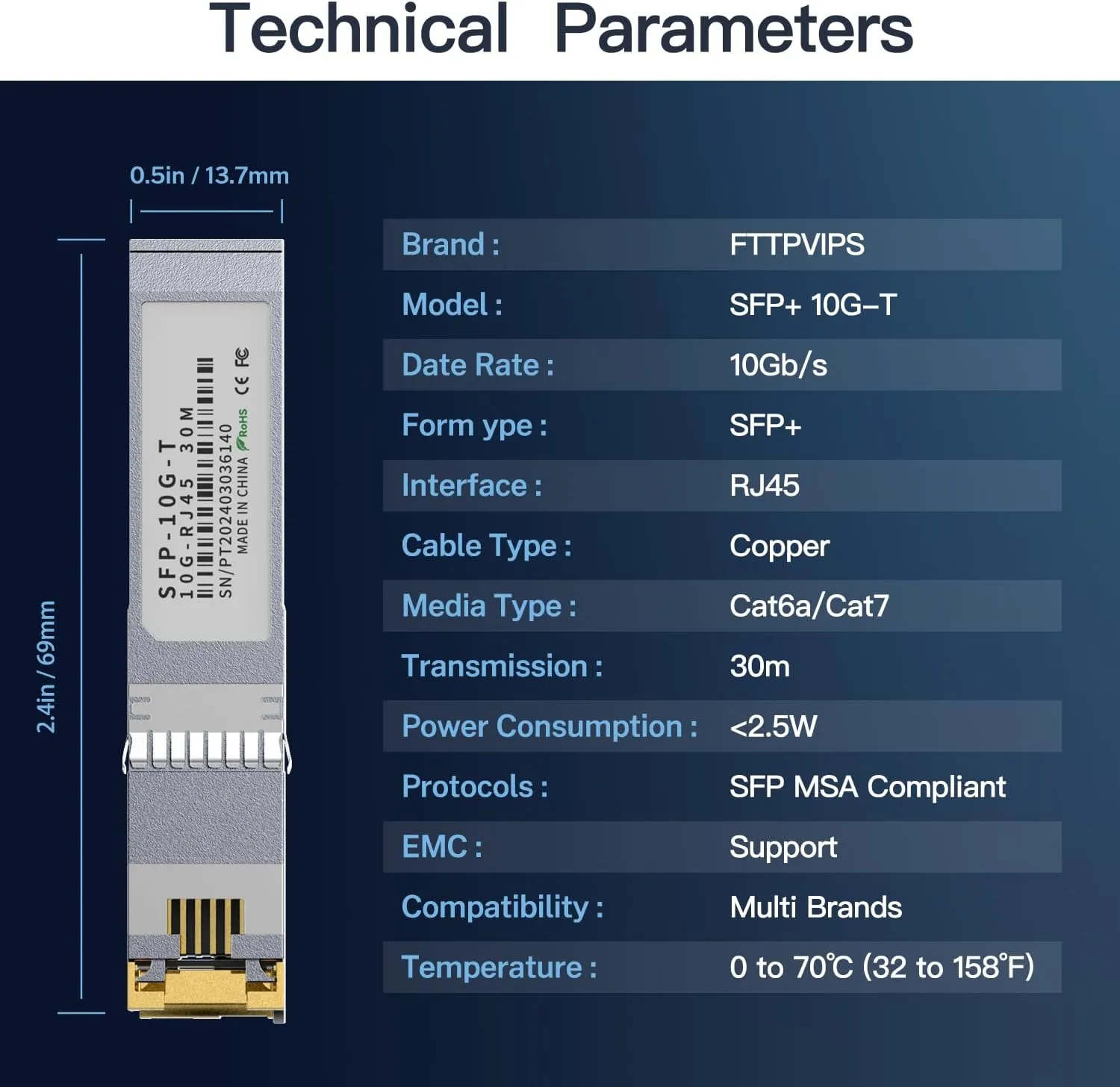

Product Specifications:
Data Rate: 1.25G/2.5G/5G/10G
Interface: RJ-45
Cable Type: Cat 5e, Cat 6A, Cat 7
Maximum Reach: Up to 30 meters (Cat 6A), up to 100 meters (Cat 5e)
Power Supply: 3.3V single power supply
Power Consumption: 2.5W max at 30m
Protocols: SFF-8431, SFF-8432 MSA, IEEE 802.3az, IEEE 802.3bz
Operating Temperature: 0°C to 70°C
Features: TX Disable, RX Los, Low EMI, Hot-pluggable
Special Functions: Auto-Negotiation, MDI/MDIX Crossover, Built-in Diagnostics
Remarkable Compatibility:
1.Device Compatibility: This transceiver is compatible with a wide range of equipment including Cisco, Meraki, Ubiquiti, D-Link, Supermicro, TP-Link, Broadcom, Linksys, Huawei, MikroTik, Netgear, and other open switches. It is ideal for 10Gbase networking devices such as fiber switches, routers, network interface cards (NICs), NAS, and 10Gb media converters.
2.Application Scenarios: Ideal for 10/5/2.5 Gigabit Ethernet over Cat 6A cable and 1.25 Gigabit Ethernet over Cat 5e cable, providing versatile connectivity options.
3.High Data Rate: Supports data rates up to 10Gb/s, making it suitable for high-performance network equipment with RJ45 interfaces.
Plug and Play:
1.Easy Connection: The RJ45 interface links seamlessly with Cat 5e/Cat 6a cables, allowing for connections up to 30 meters.
2.Simple Installation: Supports hot-swappable devices, making installation and replacement quick and hassle-free.
Enhance your network's performance and reliability with this high-quality 10GBase-T SFP RJ45 Copper Transceiver Module, designed for easy integration and exceptional compatibility with your existing network infrastructure.
