- 100CC BICYCLE ENGINE KIT: The 4 stroke engine boasts a robust 3.5HP horsepower, a displacement of 100cc, a rated power of 2kw/h, and a max rotating speed of 3600RPM, which provides you with strong power and accelerates your bike to a max speed of 50km/h.
- LOW FUEL CONSUMPTION: The bike engine kit measures 11.81x5.51x5.9 inches with a large capacity of 0.52 gallons, allowing it to work for a long time. The overhead valve is used, which dramatically improves fuel savings. The air filter also improves air filtration performance and reduces wear, achieving a fuel consumption of around 0.66 gallons/100km.
- DURABLE & STURDY: The aluminum engine shell, iron fuel tank with baking paint, a 415# steel chain with rust prevention shot blasting process, and a nylon cover on the side of the engine offer wear-resistance, achieving a max bearing capacity of 440 pounds and ensuring superior performance.
- AIR-COOLING SYSTEM: By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting riding.
- HIGH PERFORMANCE: The ergonomic T-shaped start handle provides a point of application of force for easy and comfortable starting. This bicycle engine kit only has slight noise (about 75dB) and vibration when used. You can use it in most outdoor environments without worrying about noise disturbance.
- COMPLETE KIT: This gas conversion kit is suitable for mountain bikes, road bikes, gravel bikes, beach bikes, etc. with large triangular empty frames. Our package includes all the parts to convert your bicycle into an electric one.
Specifications
Color: Black, Silver
Type: Single Cylinder, 4-stroke, Air-cooling
Displacement: 100CC
Horsepower: 3.5HP
Rated Power: 2kw/h
Max Torque: 4.5N-m
Material: Aluminum, Iron, #415 Steel, Rubber, Nylon
Surface Treatment: Baking Paint, Rust Prevention Shot Blasting
Starter System: Hand Start
Number of Teeth: 44
Ignition Mode: Electronic Ignition
Bore Stroke: 56x40mm/2.2x1.57inch
Max Rotating Speed: 3600rpm
Max Speed: 50km/31miles/h
Compression Ratio: 7:1
Fuel Tank Capacity: 2L/0.52 Gallons
Fuel Consumption: 2.5L/0.66 Gallons/100KM
Lubricant Capacity: 0.4L/0.1 Gallons
Gasoline Type: 92#, 95#
Max Load Bearing Capacity: 200kg/440lbs
Noise: About 75 decibels
Gross Weight: 21.65kg/47.73lbs
Net Weight: 19.2kg/42.32lbs
Chain Cover Size: 41x7.5cm/16.14x2.95in
Fuel Tank Size: 30x14x15cm/11.81x5.51x5.9in
Gear Diameter: 18cm/7.08in
Diameter of Bicycle Teeth Disc: 18cm/7.08in
Engine Size: 36x28x23cm/14.17x11.02x9.05in
Package Size: 71x35x28.5cm/27.95x13.77x11.22in

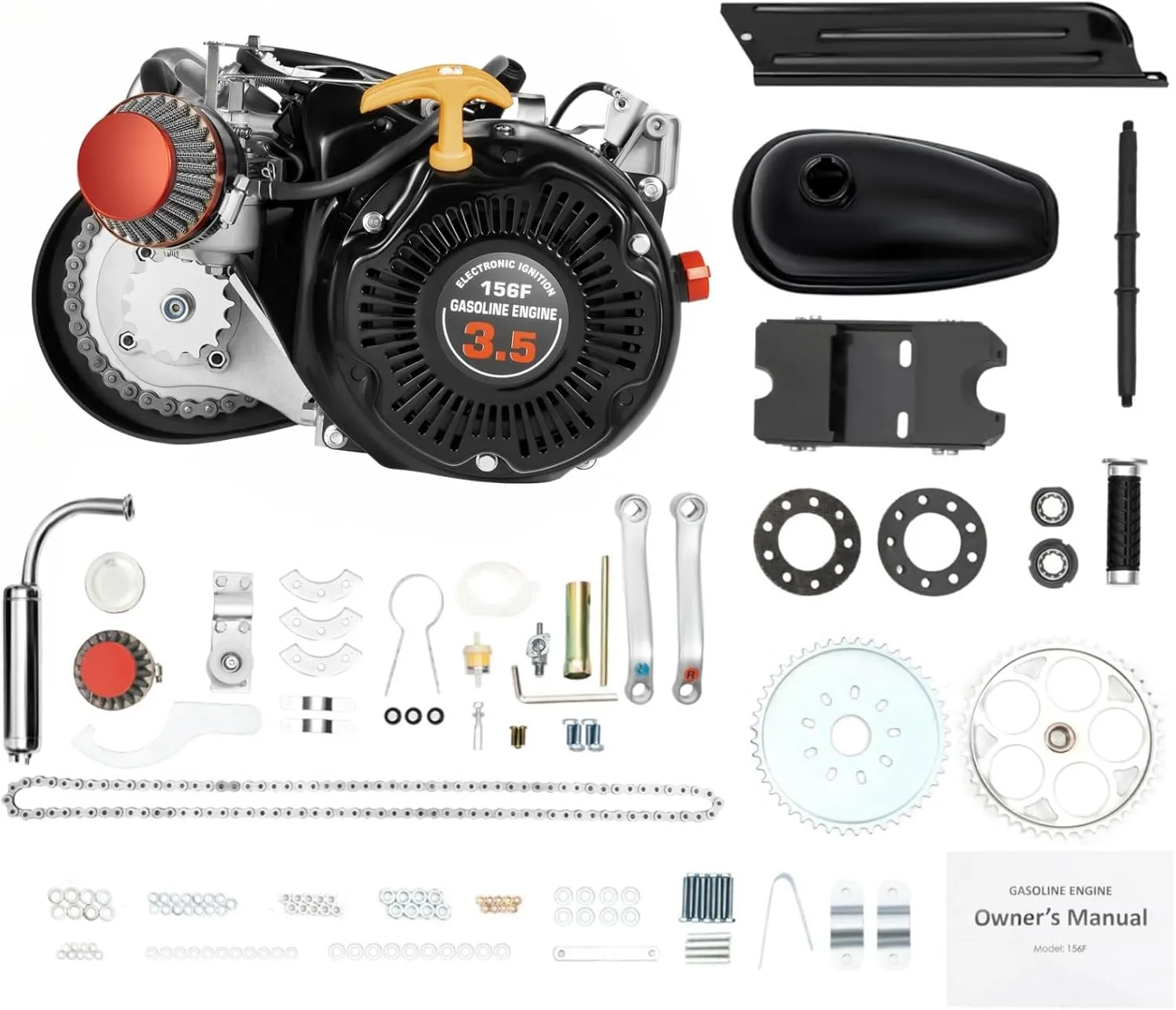

Package Included
1xBicycle Engine Kit
1xEnglish Manual
All Accessories for Assembly
Notes
1.Please carefully read the manual and strictly follow the precautions.
2.Please note that professional installation is recommended.
