- Strong and Durable:Aluminum engine housing, baked iron fuel tank, shot-peened process 415# steel chain, rubber and nylon belts make the bike engine motor kit have excellent performance and longer service life.
- Strong Power: The engine boasts a robust 3.5HP horsepower, a displacement of 100cc, a max power of 2kw/h, and a max rotating speed of 3600RPM, which provides you with strong power and accelerates your bike to a max speed of 50km/h.
- Large Fuel Tank: It measures 11.41*5.9*6.29 inches with a large capacity of 0.52 gallons, allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.
- Low Fuel Consumption: The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings, achieving a fuel consumption of around 0.66 gallons/100km and saving much money on fuel costs.
- Complete Kit: Our package includes all the parts to convert your bicycle into the electric one, meeting your needs with just one purchase!
Application
This product is suitable for mountain bikes, road bikes, gravel bikes, beach bikes and so on with large triangular empty frames.
Specifications
Color: Black, Silver
Type: Single Cylinder, 4-stroke, Air-cooling
Material: Aluminum, Iron, #415 Steel, Rubber, Nylon
Surface Treatment: Baking Paint, Rust Prevention Shot Blasting
Assembly Required: Yes
Starter System: Hand Start
Number of Teeth: 44
Ignition Mode: CDI
Max Torque: 4.5N-m
Bore Stroke: 56*40mm/2.2*1.57inch
Displacement: 100CC
Horsepower: 3.5HP
Max Power: 2kw/h
Max Rotating Speed: 3600rpm
Max Speed: 50km/h
Compression Ratio: 7:1
Fuel Tank Capacity: 2L/0.52 Gallons
Fuel Consumption: 2.5L/0.66 Gallons/100KM
Lubricant Capacity: 0.6L/0.15 Gallons
Gasoline Type: 92#, 95#
Max Load Bearing Capacity: 200kg/440lbs
Noise: About 75 decibels
Gross Weight: 21.05kg/46.4lbs
Net Weight: 18.75kg/41.33lbs
Chain Cover: 40*7.5cm/15.74*2.95in
Fuel Tank Size: 29*15*16cm/11.41*5.9*6.29in
Gear Diameter: 18cm/7.08in
Diameter of Bicycle Teeth Disc: 18cm/7.08in
Engine Size: 38*29*23.5cm/14.96*11.41*9.25in
Package Size: 73.5*35*28cm/28.93*13.77*11.02in

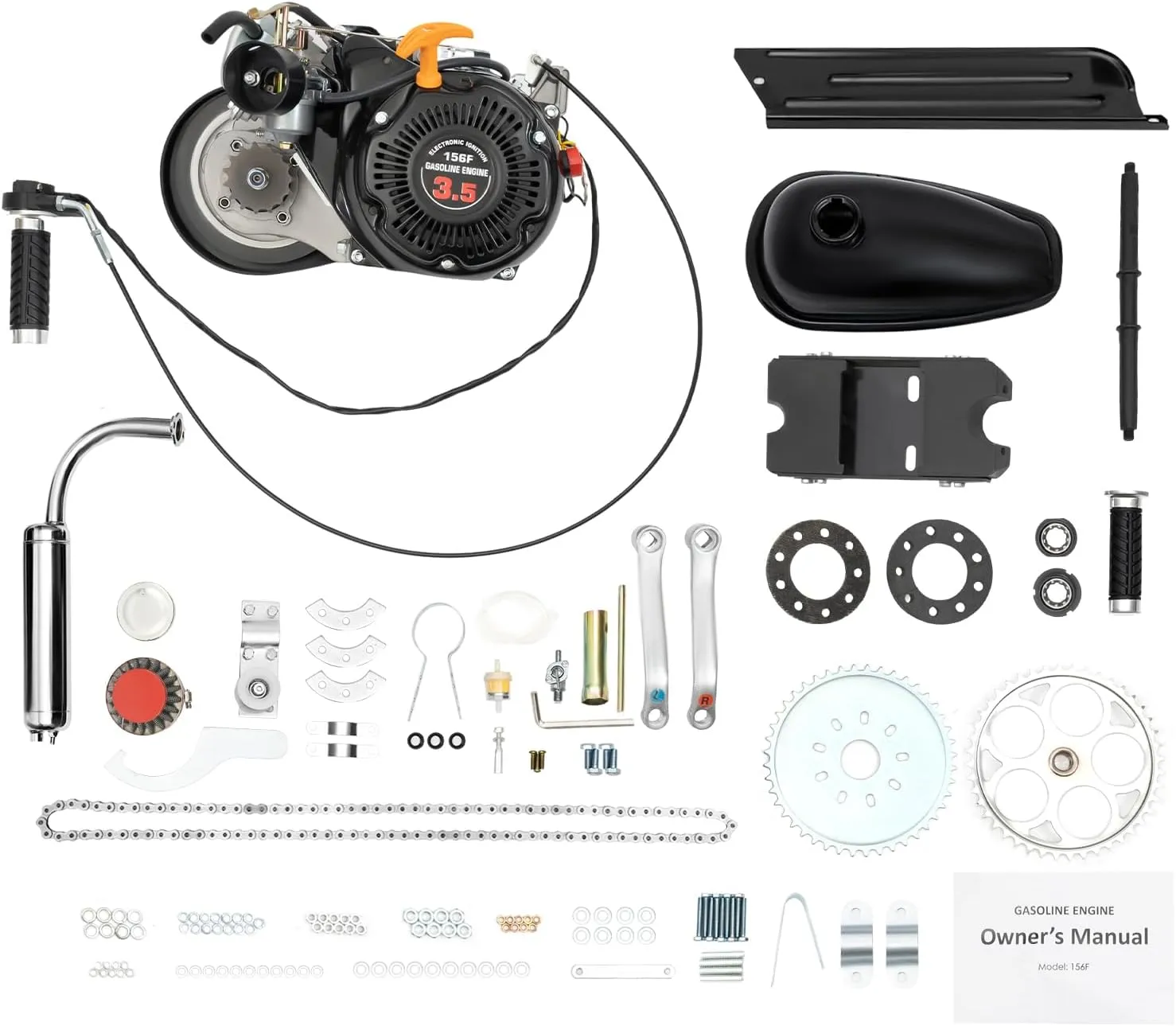

Package Included
1*Bicycle Engine Kit
1*English Manual
All Accessories for Assembly
