- 🛵[PREMIUM MATERIAL] The aluminum engine shell, iron fuel tank with baking paint, a 415# steel chain with rust prevention shot blasting process, and a rubber and nylon belt offer wear prevention, achieving a max bearing capacity of 440 pounds and ensuring superior performance and a longer lifespan.
- 🛵[HIGH PERFORMANCE] The 4-stroke engine boasts a robust 3.5HP horsepower, a displacement of 100cc, a max power of 2kw/h, and a max rotating speed of 3600RPM, which provides you with strong power and accelerates your bike to a max speed of 50km/h.
- 🛵[LARGE FUEL TANK] This 100CC bicycle engine kit measures 11.41x5.9x6.29 inches with a large capacity of 0.52 gallons, allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.
- 🛵[QUIET OPERATION] This 4-stroke bicycle engine kit only has slight noise (about 75dB) and vibration when used. You can use it in most outdoor environments without worrying about noise disturbance.
- 🛵[COOLING SYSTEM] By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting riding.
Specifications
Color: Black, Silver
Type: Single Cylinder, 4-stroke, Air-cooling
Material: Aluminum, Iron, #415 Steel, Rubber, Nylon
Surface Treatment: Baking Paint, Rust Prevention Shot Blasting
Assembly Required: Yes
Starter System: Hand Start
Number of Teeth: 44
Ignition Mode: CDI
Max Torque: 4.5N-m
Bore Stroke: 56x40mm/2.2*1.57inch
Displacement: 100CC
Horsepower: 3.5HP
Max Power: 2kw/h
Max Rotating Speed: 3600rpm
Max Speed: 50km/h
Compression Ratio: 7:1
Fuel Tank Capacity: 2L/0.52 Gallons
Fuel Consumption: 2.5L/0.66 Gallons/100KM
Lubricant Capacity: 0.6L/0.15 Gallons
Gasoline Type: 92#, 95#
Max Load Bearing Capacity: 200kg/440lbs
Noise: About 75 decibels
Gross Weight: 21.05kg/46.4lbs
Net Weight: 18.75kg/41.33lbs
Chain Cover: 40x7.5cm/15.74x2.95in
Fuel Tank Size: 29x15x16cm/11.41x5.9x6.29in
Gear Diameter: 18cm/7.08in
Diameter of Bicycle Teeth Disc: 18cm/7.08in
Engine Size: 38x29x23.5cm/14.96x11.41x9.25in
Package Size: 73.5x35x28cm/28.93x13.77x11.02in

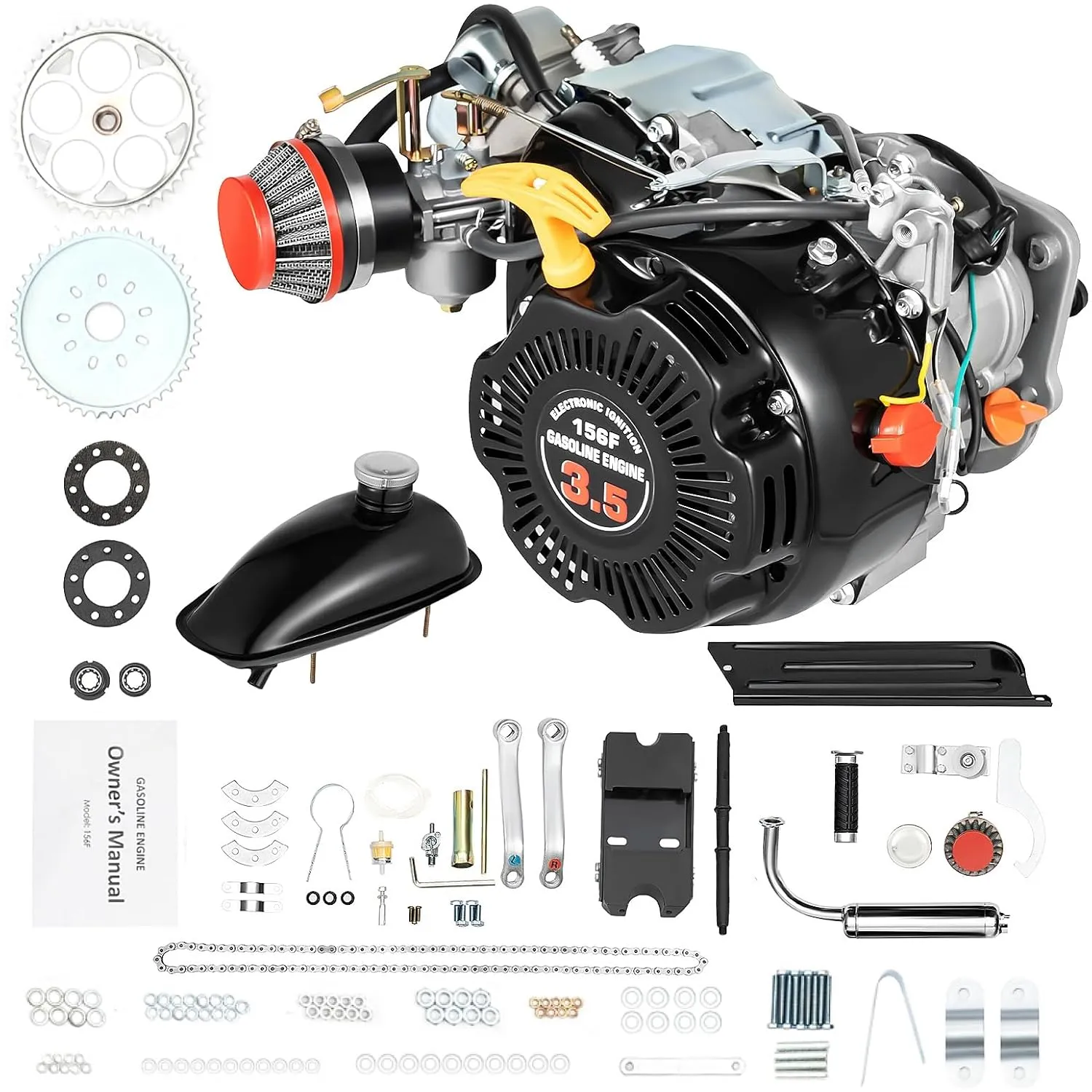

Package Included
1xBicycle Engine Kit
1xEnglish Manual
All Accessories for Assembly
Application
This 100CC Bicycle Engine Kit is suitable for mountain bikes, road bikes, gravel bikes, beach bikes and so on with large triangular empty frames.
Notes
1. Please carefully read the manual and strictly follow the precautions to have a better experience.
2. Please note that professional installation is recommended.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
- Date First Available : November 6, 2023
- Manufacturer : Averceek
- Country of Origin : China
