- Durable & Sturdy: The 4 stroke bicycle engine kit has aluminum engine shell, iron fuel tank with baking paint, a 415# steel chain with rust prevention shot blasting process, and a nylon cover on the side of the engine offer good quality, achieving a max bearing capacity of 440 pounds and ensuring superior performance and a longer lifespan.
- Strong Power: The 100cc engine motor for bicycle boasts a robust 3.5HP horsepower, a displacement of 100cc, a rated power of 2kw/h, and a max rotating speed of 3600RPM, which provides you with strong power and accelerates your bike to a max speed of 50km/h.
- Large Fuel Tank: This motorized bike engine kit measures 11.81*5.51*5.9 inches with a large capacity of 0.52 gallons, allowing the bicycle engine to work for a long time. You don't need to fill the tank frequently, which is convenient.
- Low Fuel Consumption: The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. The air filter also improves air filtration performance and reduces wear, achieving a fuel consumption of around 0.66 gallons/100km and saving much money on fuel costs.
- Quiet Operation: This 4 stroke bicycle engine kit only has slight noise (about 75dB) and vibration when used. You can use motor for bicycle in most outdoor environments without worrying about noise disturbance.
Application
This product is suitable for mountain bikes, road bikes, gravel bikes, beach bikes, etc. with large triangular empty frames.
Specifications
Color: Black, Silver
Type: Single Cylinder, 4-stroke, Air-cooling
Material: Aluminum, Iron, #415 Steel, Rubber, Nylon
Surface Treatment: Baking Paint, Rust Prevention Shot Blasting
Assembly Required: Yes
Starter System: Hand Start
Number of Teeth: 44
Ignition Mode: Electronic Ignition
Max Torque: 4.5N-m
Bore Stroke: 56*40mm/2.2*1.57inch
Displacement: 100CC
Horsepower: 3.5HP
Rated Power: 2kw/h
Max Rotating Speed: 3600rpm
Max Speed: 50km/31miles/h
Compression Ratio: 7:1
Fuel Tank Capacity: 2L/0.52 Gallons
Fuel Consumption: 2.5L/0.66 Gallons/100KM
Lubricant Capacity: 0.4L/0.1 Gallons
Gasoline Type: 92#, 95#
Max Load Bearing Capacity: 200kg/440lbs
Noise: About 75 decibels
Gross Weight: 21.65kg/47.73lbs
Net Weight: 19.2kg/42.32lbs
Chain Cover Size: 41*7.5cm/16.14*2.95in
Fuel Tank Size: 30*14*15cm/11.81*5.51*5.9in
Gear Diameter: 18cm/7.08in
Diameter of Bicycle Teeth Disc: 18cm/7.08in
Engine Size: 36*28*23cm/14.17*11.02*9.05in
Package Size: 71*35*28.5cm/27.95*13.77*11.22in
Package Included

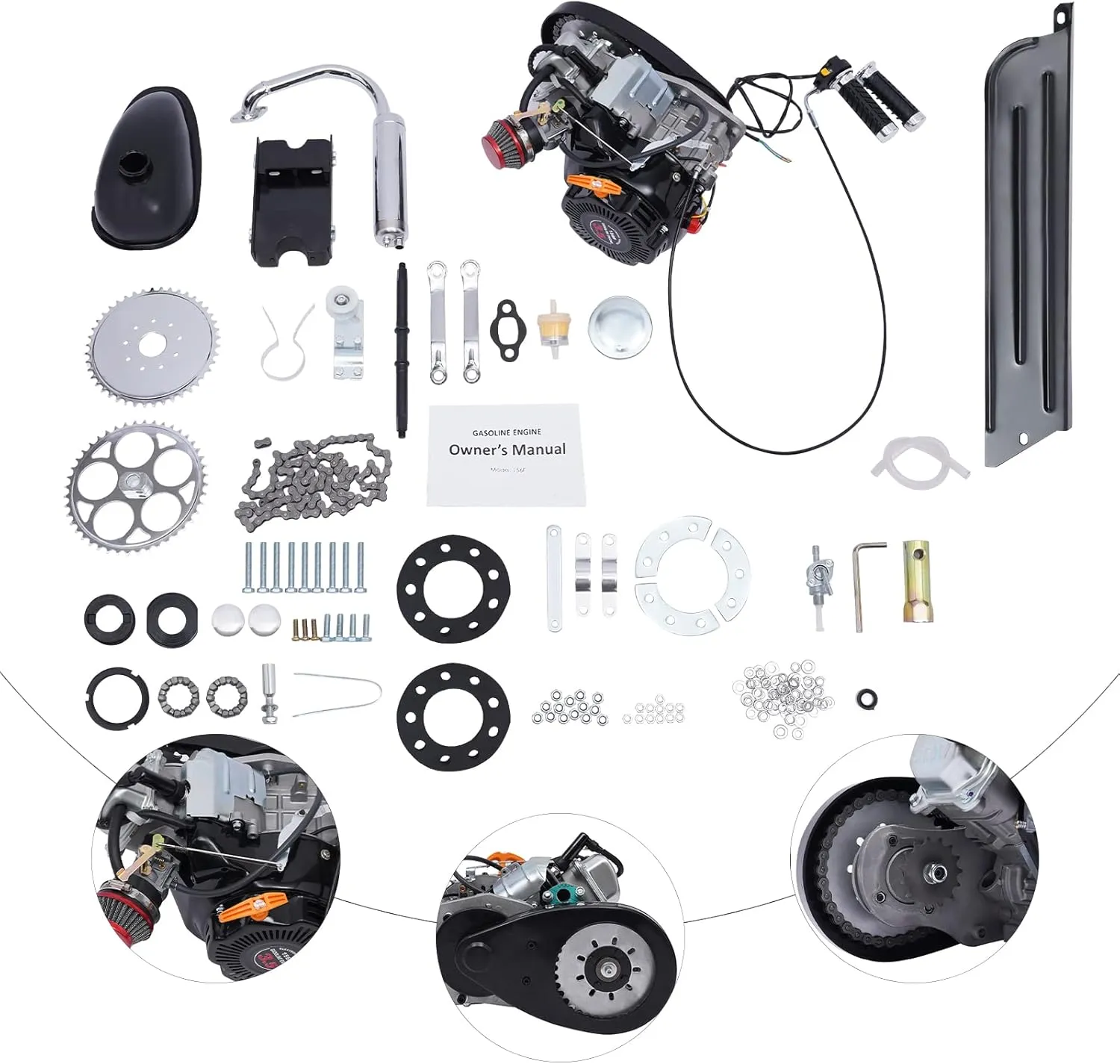

1*Bicycle Engine Kit
1*English Manual
All Accessories for Assembly
